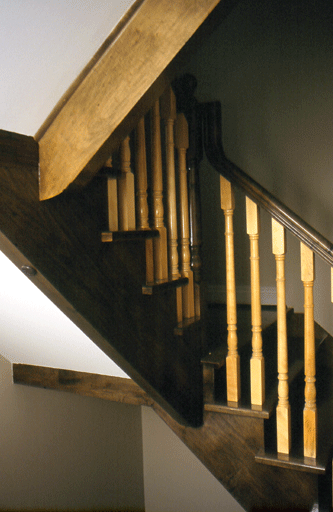

The view in this image shows all three staircase mostly from
the side and back illustrating the floating landing and self supporting
stringer configurations from an internal perspective. Lower right is
the first stair case leading off the main floor terminating at the landing
mid page. The center shows the mid staircase having come off the first
landing at 90 degrees and terminating at the landing above. The upper left
shows after turning 90 degrees once more the underside of the inside
stringer and drywall on the third stair in the series terminating on the
second floor header which is not quite visible at the top of the image .
This also shows another view of the tread and return overhang on the the
C1S stringer mid picture.
-
